Extrusion lineExtrusion line

Accessory equipment

Release TIme:2019-03-29

Application:

Equipment for handling extruded profiles after press is varied. Generally our accessory equipment include die heating furnace, billet furnace, handling table, puller and aging furnace.


Parameter:

1350T handling table

No Item Parameters
1 Adaptive standard height of handling table
800±20mm(from roller to the floor)
2 The center line of the discharging distance
≤320mm
3 Adaptive run out table length
≥5m
4 Pulling Length (Handing Table)
32m
5 Adaptive height and width of aluminum profile
W200*H150mm
6 Synchronize with pull force
10~100kgf
7 Synchronize with pull speed
0~100m/min
8 Rapid return speed
0~400m/min
9 Cutting scrap length
≤200mm
10 Cutting linear velocity
≈4000m/min
11 Cutting push speed
≤300mm/s(Depend on the thickness of profile,adjustable)
12 External connection air pressure
0.5~0.8Mpa,≈1m³/h
13 Power of pull motor
7.5kw*2
14 Power of Vehicle-mounted hydraulic system
1.5kw *2
15 Motor power of cutting saw
4kw
16 Cutting Mist Spray
Pneumatic
17 Control System
PLC

Reference:


Photo 1: Multiple billet heating furnace

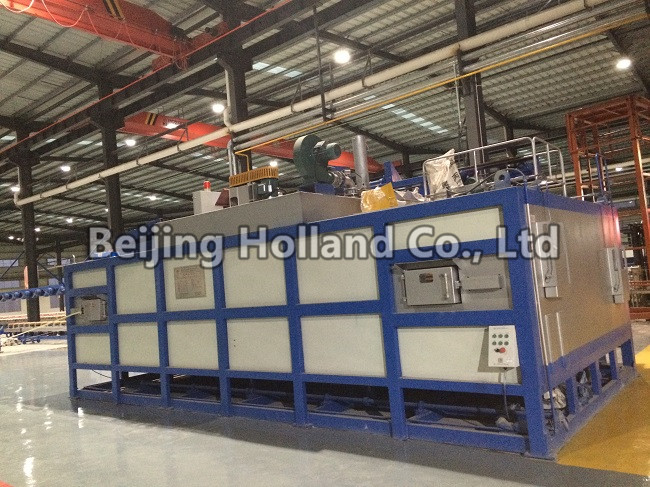

Photo 2: Inlet of billet heating furnace




Photo 3: Outlet of billet heating furnace

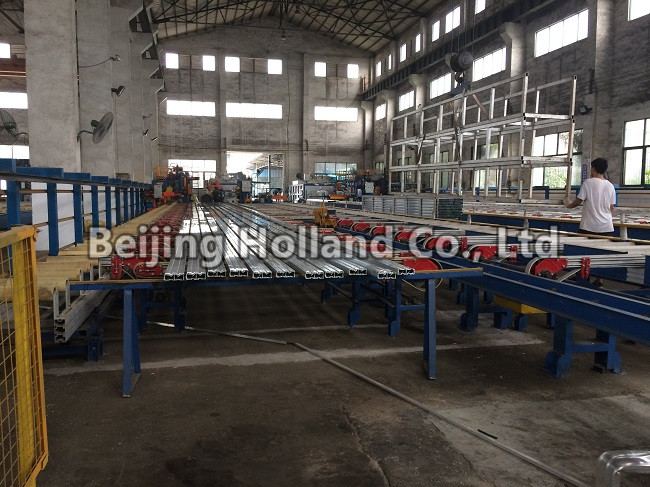

Photo 4: Cooling table

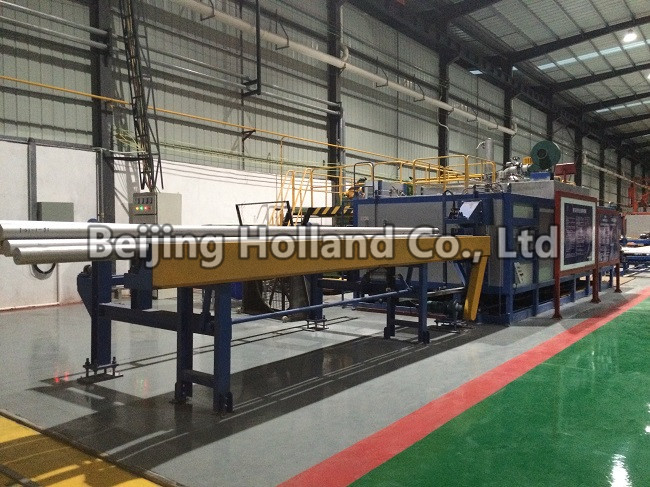

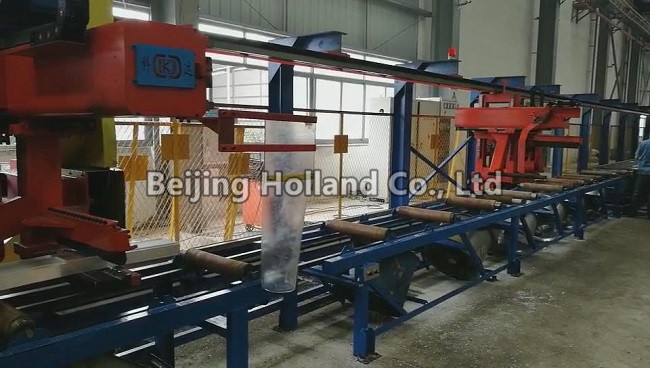

Photo 5: Standard double puller

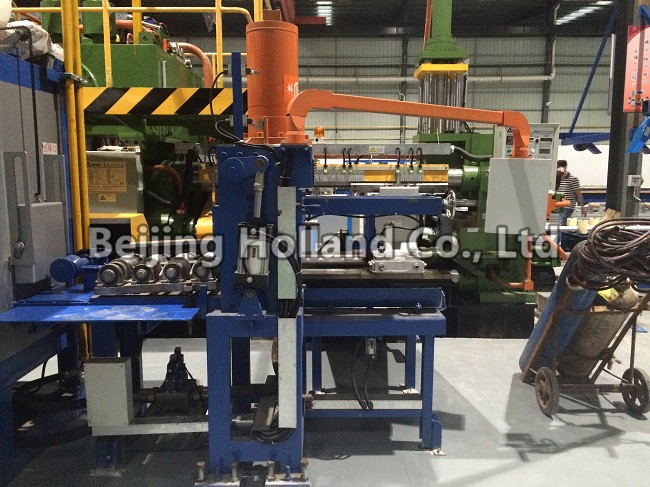

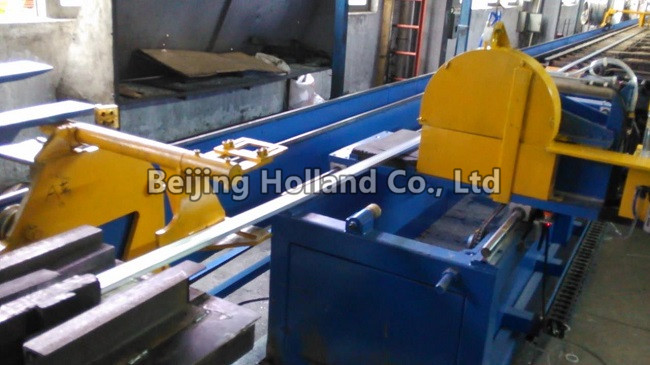

Photo 6: Simplified double puller

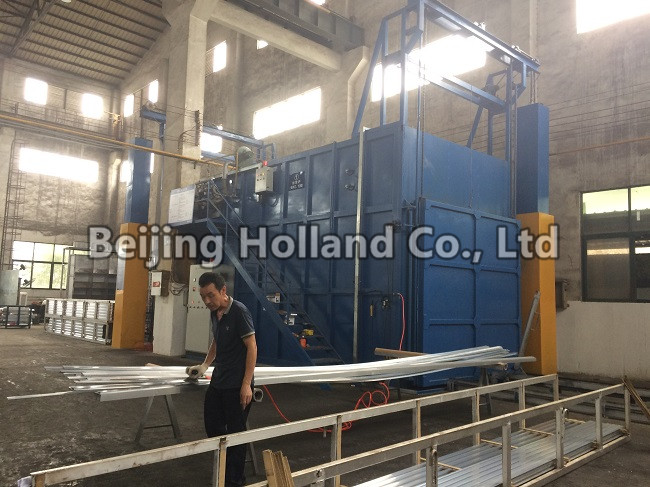

Photo 7: Aging furnace
