Sleeve filter system

Release TIme:2019-03-29

Application:

Sleeve filter system is an ideal environmentally friendly product that can be used to desulfurize and remove the dust for boilers which use rice husks, sawdust, wood, and coal as fuel in current coal-fired, oil-fired boilers, coal-water slurry boilers, kiln furnaces, also the acid mist purification, thermal power plants, and cement plants.

Parameter:

6T sleeve filter system (Only for reference):

No	Item	Specification
1	Machine dimension(LWH)	520024006500mm/ about 6 tons
2	Entrance air volume	18000 m³/h
3	Dust collection efficiency	＜30mg
4	Total filtering speed	0.8m/s
5	Equipment resistance	1800P
6	Air flow leakage	＜1%
7	Bag material	FMS (high temperature resistance filter material can resist 220-260℃)
8	Chamber	1
9	Cloth bags’number	348
10	Bag specification	133*2500mm
11	Centrifuge	37Kw
12	Cyclone	Φ=1500mm
13	Filter capacity	348m²
14	Filter body thickness	5mm
15	Motor	440V/60Hz

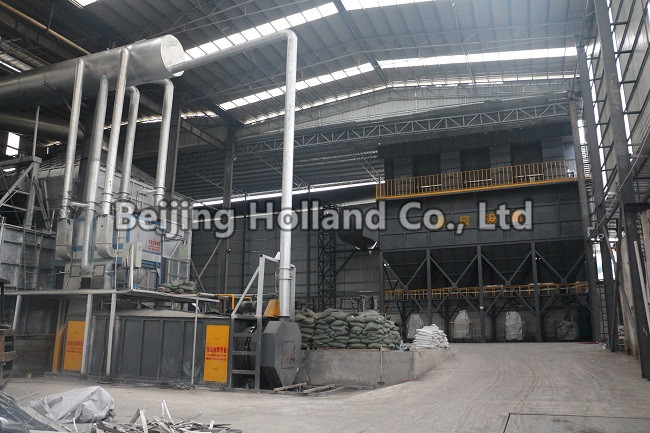

Reference:
