I. Rockwool equipment

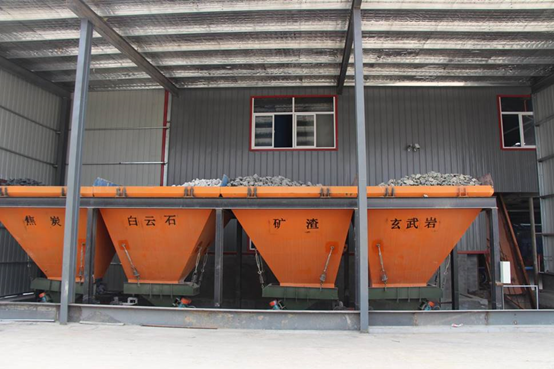

1. Automatic charging system
The automatic batching and charging system consists of weighing hopper, vibrating feeder, belt conveyor, PLC
control system etc.
Feeding material
|
Item |
Name |
Standard code |
Technical requirement |
|
01 |
basalt |
Q/0323SLYYM001-2012 |
Enterprise standard |
|
02 |
dolomite |
Q/0323SLYYM002-2012 |
Enterprise standard |
|
03 |
coke |
Q/0323SLYYM003-2012 |
Enterprise standard |
|
04 |
slag |
Q/0323SLYYM004-2012 |
Enterprise standard |

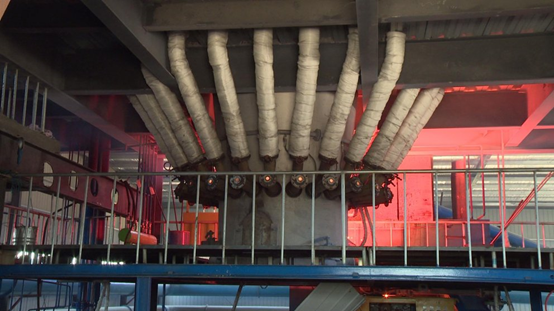

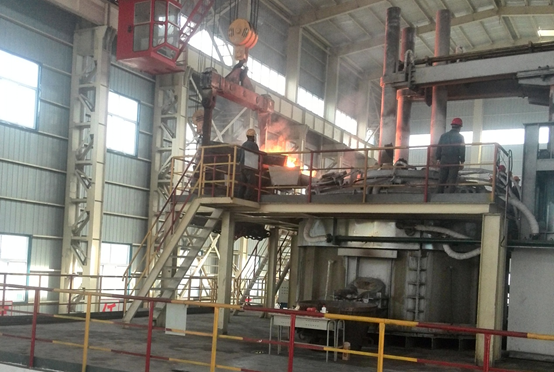

2. Rockwool cupola furnace
|
Cupola blasting air |
400~500℃ |
|
Blast volume |
Normal 4000~5000 Nm3/h |
|
Max. 6500 Nm3/h |
|
|
Circulating water |
100 m3/h |
|
Oxygen enrichment |
600~110 Nm3/h |
|
Molten temperature |
1400℃~1450℃ |

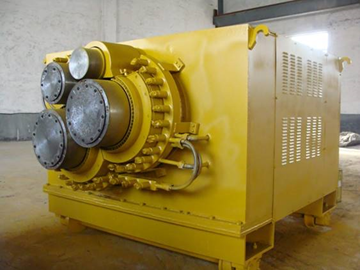

3. Spinning machine
The spinning machine is central part for fiber forming.
|
Rollers |
RPM |
Cooling water flow |
|
1# |
2800~3500 |
1000 L/h |
|
2# |
4000~5000 |
1200 L/h |
|
3# |
5000~6000 |
1500 L/h |
|
4# |
5500~6500 |
1500 L/h |

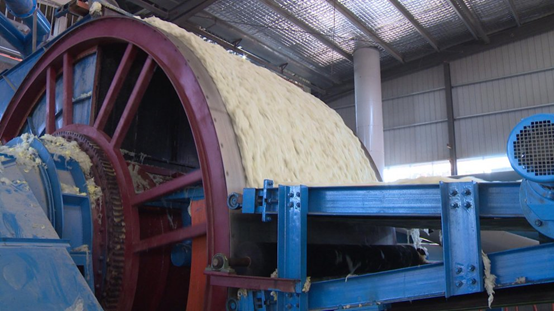

4. Wool collector
Technical parameters
|
Mats width |
2400 mm |
|
Max. linear speed |
100 m/min |
|
Drum diameter |
Φ 5000 mm |

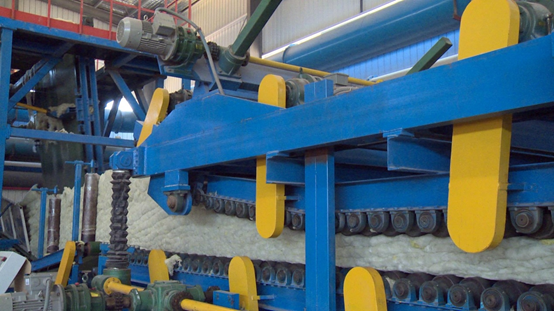

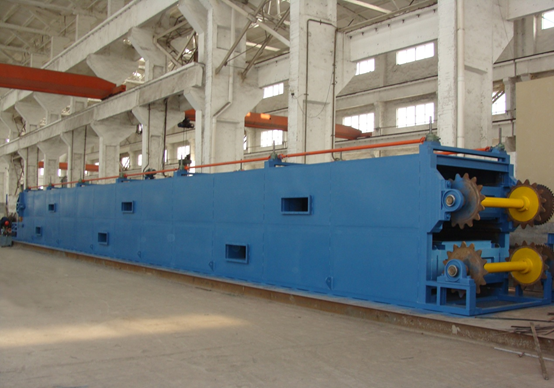

5. Curing oven
Temperatures in different sections
|
Zone |
1 |
2 |
3 |
4 |
|
Temperature |
200~220℃. |
230~240℃. |
270~290℃. |
270~290℃ |

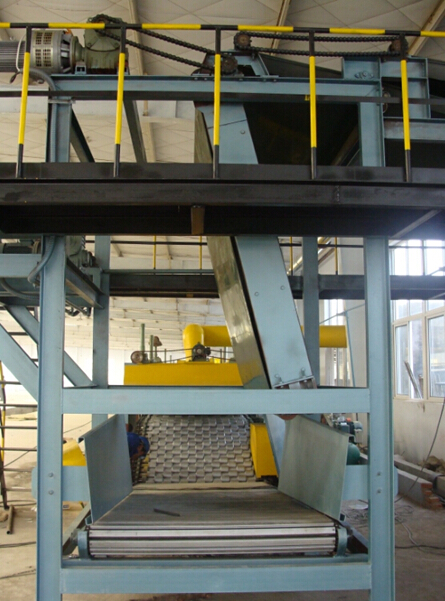

6. Pendulum
7. Pleating machine
Technical parameters
|
Pleating thickness |
30~250 mm |
|
Speed |
2.4~12 m/min |
|
Vertical distance between rollers |
10~610 mm |
|
Power |
28.4Kw |

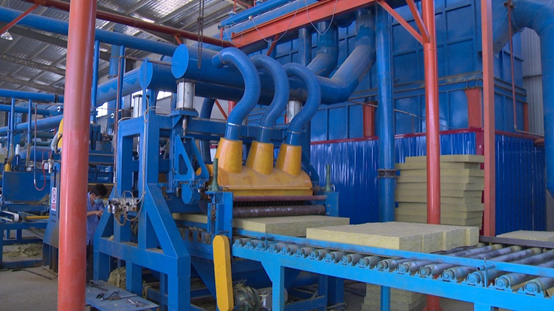

8. Cutting system

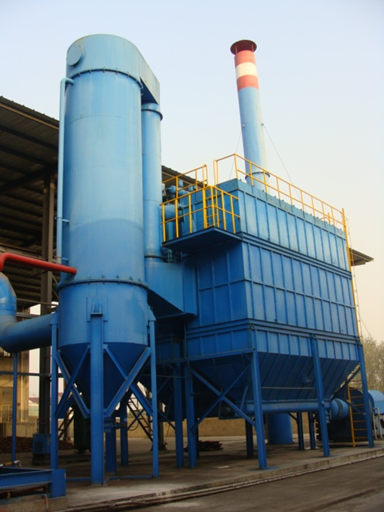

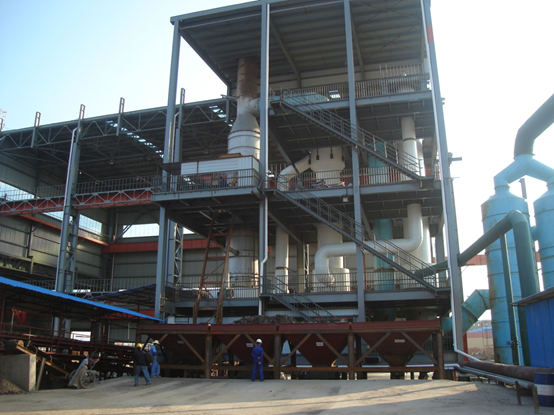

9. Dust collector
II. Slagwool equipment
Electrical slag regulating and holding furnace
III. Foundry equipment

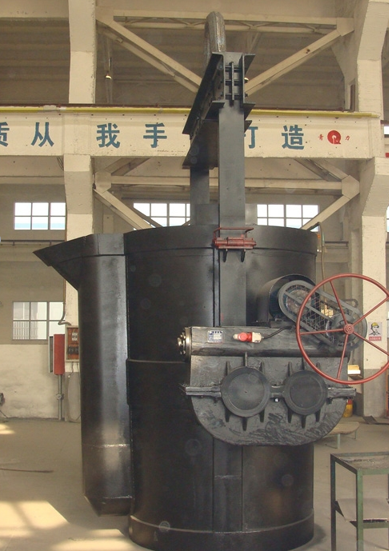

1. Teapot ladles
2. Cupola furnace
