Aluminum smelting furnace

Release TIme:2019-04-02

Application:

Our company supplies aluminum smelting reverberatory furnaces, aluminum smelting shaft furnace, holding furnace and rotary furnace. It is suitable for smelting of primary alloy or secondary alloy. The configuration can be customized according to the different needs of customers.


Parameter:

25T rectangular furnace:

No Item Name Note
1 Products and capacity
Capacity: 6T/h

3, 6 and 8 series aluminum alloy rod

Pure aluminum ( EC Grade)
2 Raw material
A00 aluminum ingots + return scrap

3 Fuel
NG
Heat value ≥8400Kcal/m3;
<60 Nm³/ton.Al
GPL
Heat value ≥26000Kcal/Nm³;
<18Nm³/ton.Al
4
Ingot burning loss

0.5-0.8%
5 Overhaul repair time

≧ 5 years
6 Combustion system life

regenerative room ≧3 years;
burner ≧2 years
7 Furnace weight

150Tons


6T/h shaft furnace:

No Item Name Note
1 Products and capacity
Capacity: 6T/h
6101-6201 aluminum alloy
2 Raw material
A00 aluminum ingots (15~20kg)
Heat value ≥26000Kcal/Nm³;21~22.6Nm³/ton.Al
3 Fuel
GLP

4 Ingot burning loss

2.5%
5 Overhaul repair time

4 years
6 Combustion system life

burner ≧2 years
7 Furnace weight

60Tons


Reference:

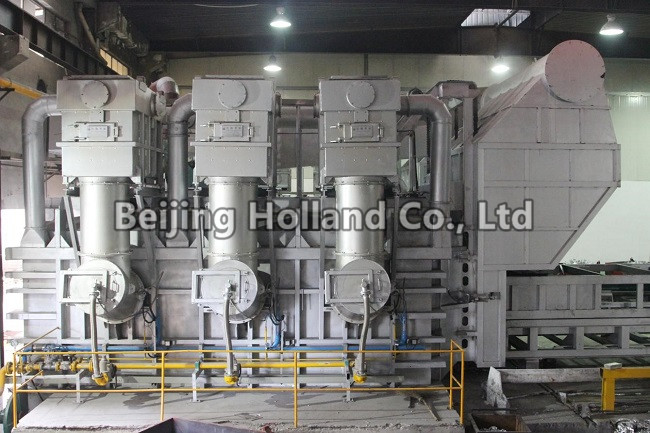

Photo 1: Rectangular furnace

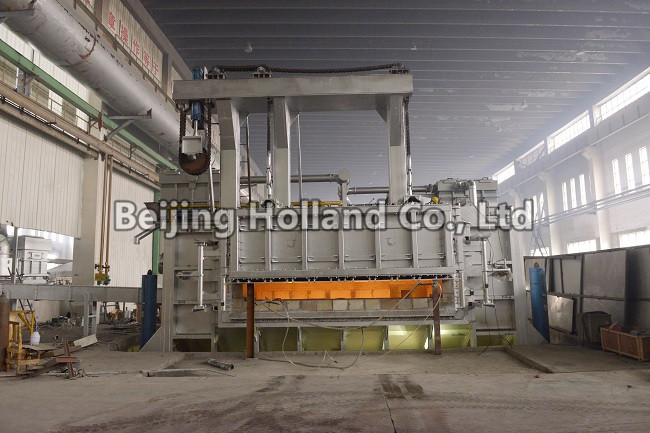

Photo 2: Top open furnace

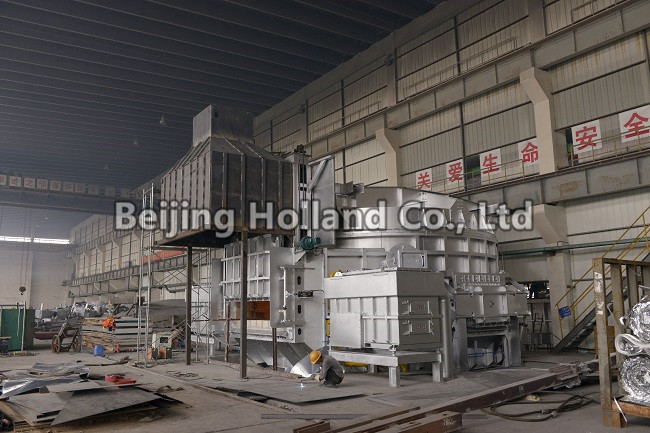

Photo 3: Regenerative system

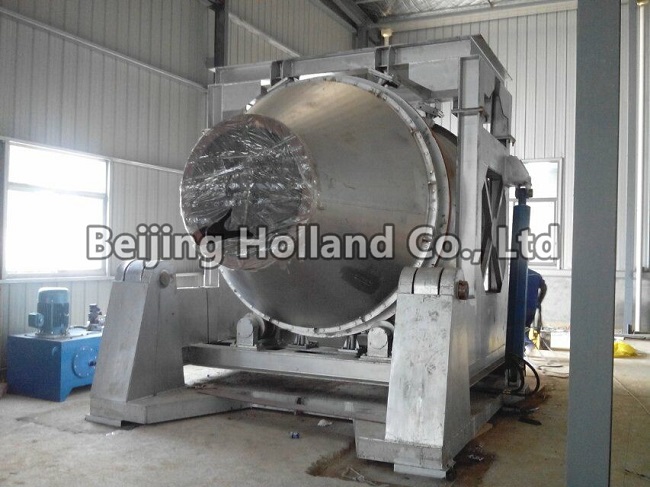

Photo 4: Rotary furnace
