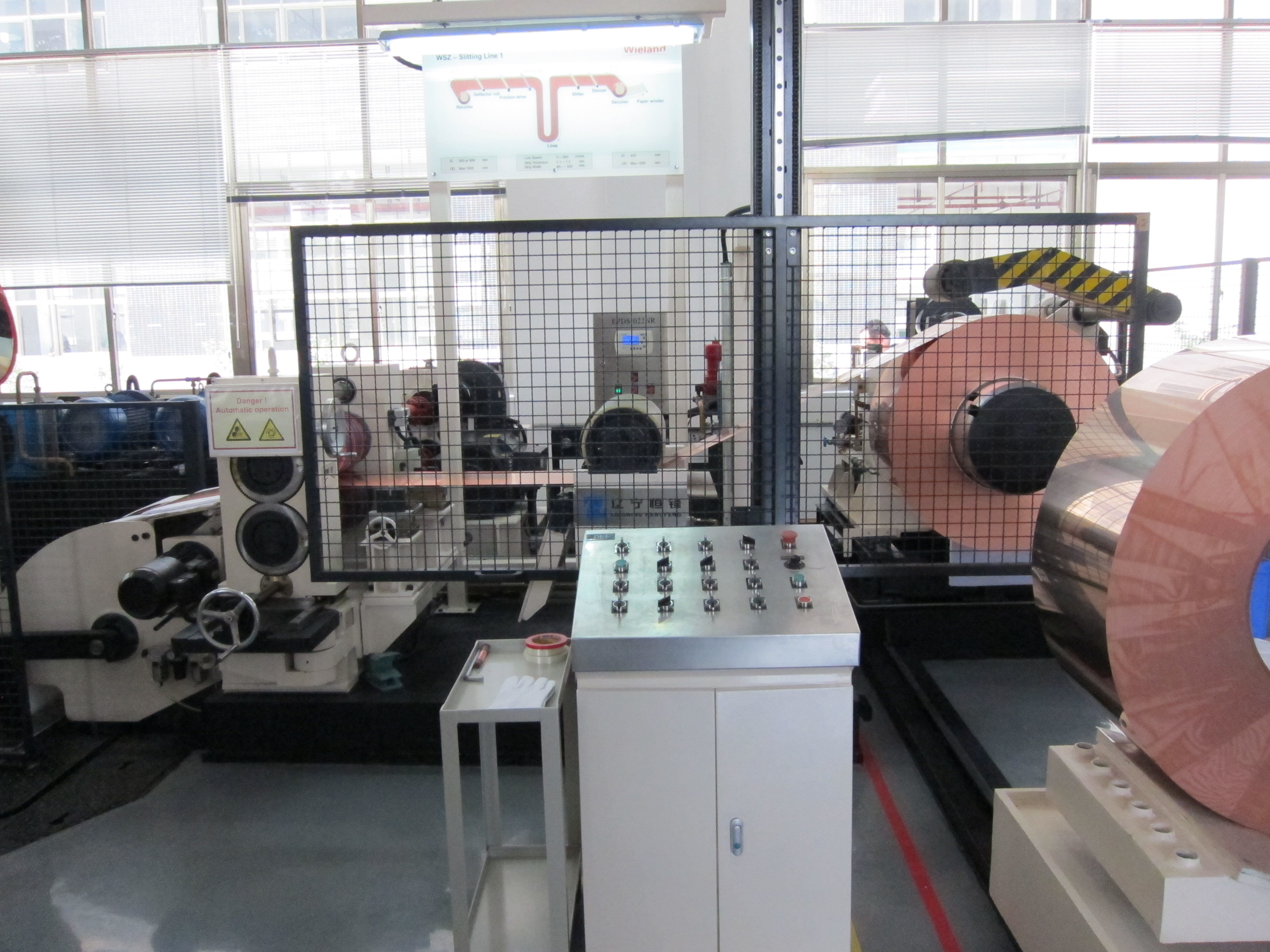

Slitting line

Material type

 Aluminum/Copper/Steel and alloy strip coil

Material specification

 Material thickness:0.08-3.6mm

 Material width:100-1600mm

 Max weight:10t

Product specification

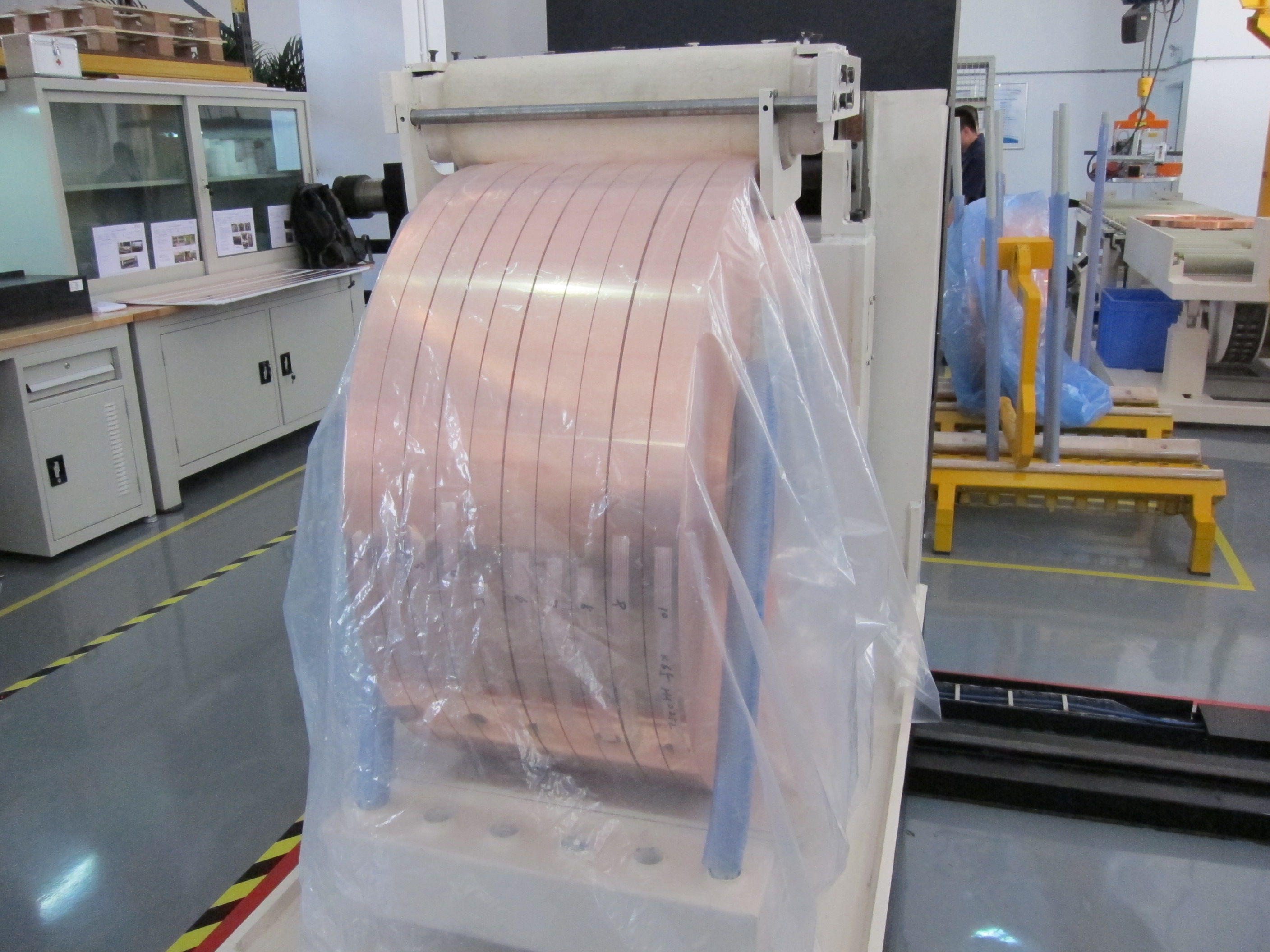

 Strip width:25-1350mm

 Nos of slitted strips:4-40

Product precision

 Slitting width accuracy:±0.05mm (thickness≤0.5mm)

 Slitting width accuracy:±0.1mm (0.5mm≤thickness≤2mm)

 Slitting width accuracy:±0.15mm (thickness≥2mm)

 Finished mislayer clearance:≤±0.5mm

 Finished taping clearance:≤±2mm

Machine data

 Threading speed:15m/min

 Line speed:0-300m/min
