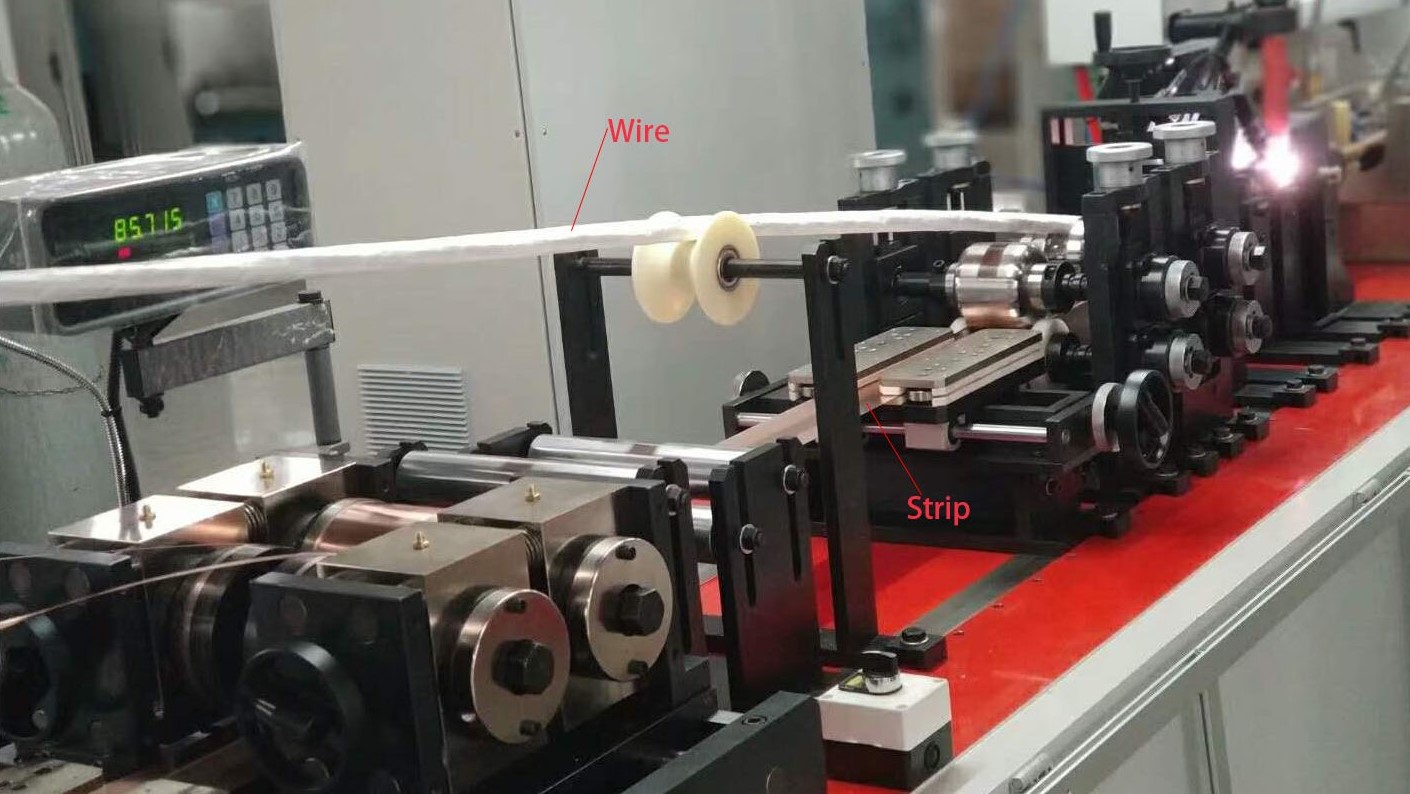

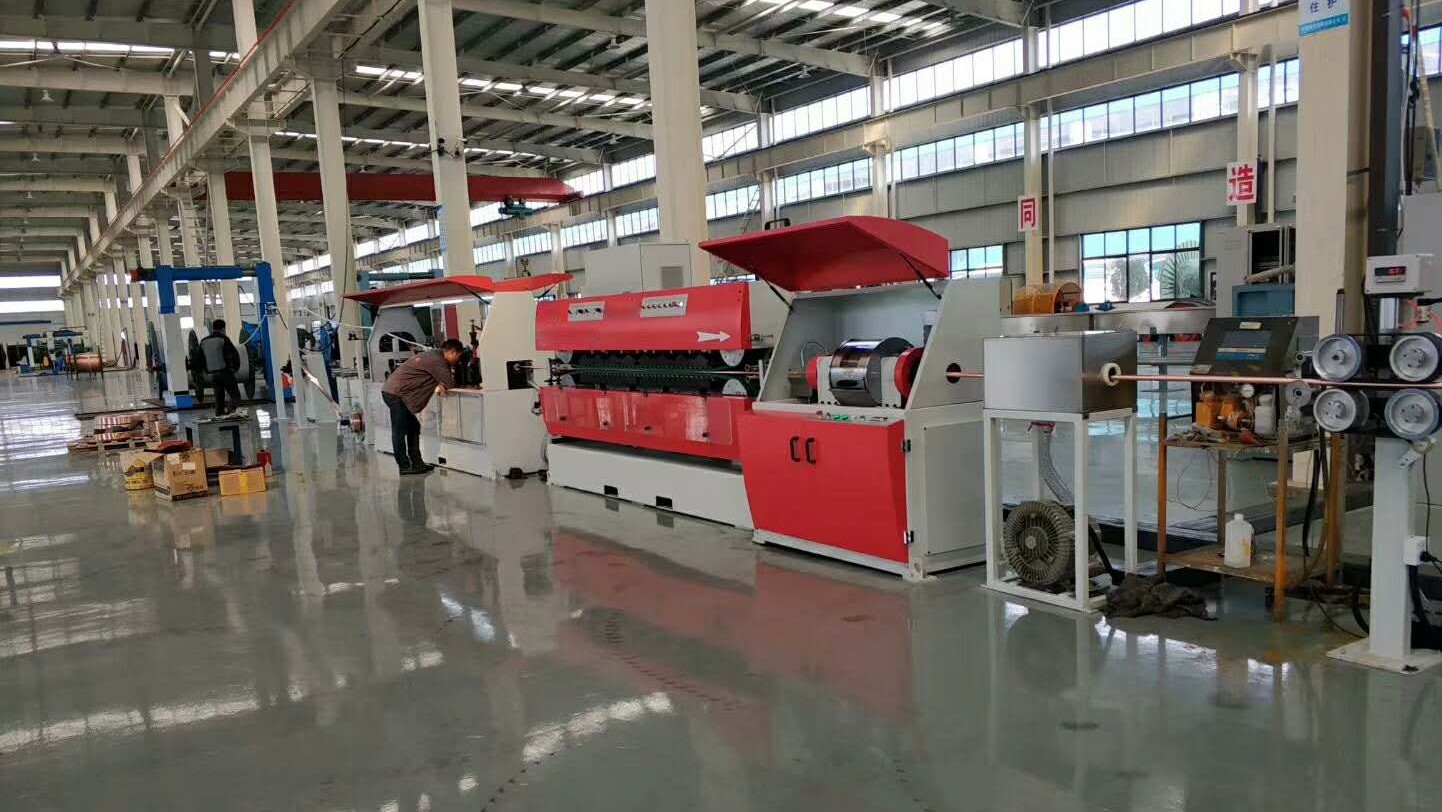

Metal pipe welding & corrugating line

No.

Item

Parameter

1

 Welded Pipe diameter

 Φ10～Φ60mm

2

 Welded metal material

 Cu tape, Al tape

3

 Tape thickness

 Cu 0.3mm～1.2mm;
 Al 0.6mm～2.0mm

4

 Max welding speed

 20m/min

5

 Welding current

 5～350A

6

 Max Corrugated speed

 3000rpm

7

 Corrugated pitch

 4mm～20mm

8

 Corrugated depth

 0.5mm～4mm
 Corrugated depth can be     aadjust online in non-stop acondition

9

 Corrugated type

 spiral

10

 Max pulling force

 2000kg

11

 Max line speed

 20m/min

12

 Caterpillar motor power

 7.5KW (AC frequency aconversion, SIEMENS)

13

 Corrugation motor power

 11KW (AC servo)

14

 Welding protection gas

 argon gas or helium gas

15

 Working gas pressure

 ＞0.4Mpa

16

 Water supply volume

 ＜1m3/hour

17

 Pay off reel size

 PN1250～PN2000mm

18

 Take up reel size

 PN1250～PN2000mm

19

 Central height

 1000mm

20

 Installed capacity

 ＜70KVA
